2WD 30,000 Series

The Flagship — Dynocom's Largest and Most Capable 2WD Chassis Dynamometer

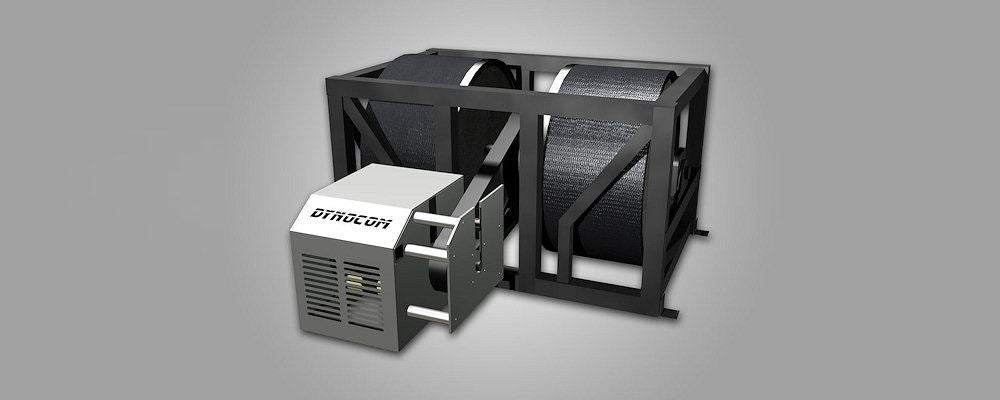

The Dynocom 2WD 30,000 Series is the pinnacle of chassis dynamometer engineering. Featuring twin 48" diameter, 28"-wide rolls and a total mechanical equivalent inertia of approximately 3,000 lbs, this is the machine that OEMs trust when accuracy and repeatability are non-negotiable. If you’re testing vehicles that demand the absolute best, there’s nothing else like it.

Performance Specs

• Twin 48" diameter × 28" wide rolls
• Total mechanical equivalent inertia: ~3,000 lbs
• Maximum axle weight: 8,000 lbs
• Track width range: 28"–86"
• Upgradeable with belt-driven eddy brake system

OEM-Grade Engineering

• Largest roll diameter in the Dynocom lineup for minimal tire deformation
• Maximum contact patch area ensures unmatched repeatability test to test
• Heavy-duty open-frame construction for serviceability and longevity
• The choice for OEM manufacturers who demand precision above all else

Testing Capabilities

• Drag strip, steady state, acceleration, and coast-down tests
• Ultra-high horsepower and ultra-high torque vehicle testing
• Optional belt-driven eddy brake for steady-state load testing
• Best-in-class accuracy across all test scenarios

Built for the shops and manufacturers that refuse to compromise — the 30,000 Series is where performance testing meets engineering perfection.
