2WD 15,000 Series
$36,995.00
The Ultimate High-Power 2WD Chassis Dynamometer
When your shop handles the biggest builds on the planet, you need a dyno that can keep up. The Dynocom 2WD 15,000 Series is engineered for extreme performance testing — from fire-breathing drag cars to monster diesel rigs — with a 102" track width, 14,000 lb axle capacity, and the world's largest available eddy brake option.
Performance Specs
- Max speed: 240+ MPH
- Max power: 2,400+ HP
- Max axle weight: 14,000 lbs
- Track width range: 30"–102"
- Eddy brake upgrade (DC-PAU-750): 850+ HP additional load capacity
- World's largest eddy brake: 3,000+ ft lbs of torque support
Revolutionary Frame Design
- Massive welded hybrid-pyramid frame wrapped in steel
- New frame geometry delivers better braking and smoother operation
- Standard X Factor Knurling for highest traction — outperforms all competitors
- Center-mounted eddy brake assembly sits directly on the shaft between rollers — no belt or universal joint, all power transferred directly to the load cell
Advanced Testing Capabilities
- Standard: inertia-based acceleration testing
- With DC-PAU-750 eddy brake: acceleration, step, sweep, and steady-state tests
- Real-time torque and horsepower output at steady and changing speeds
- Instantly evaluate fuel and timing map changes

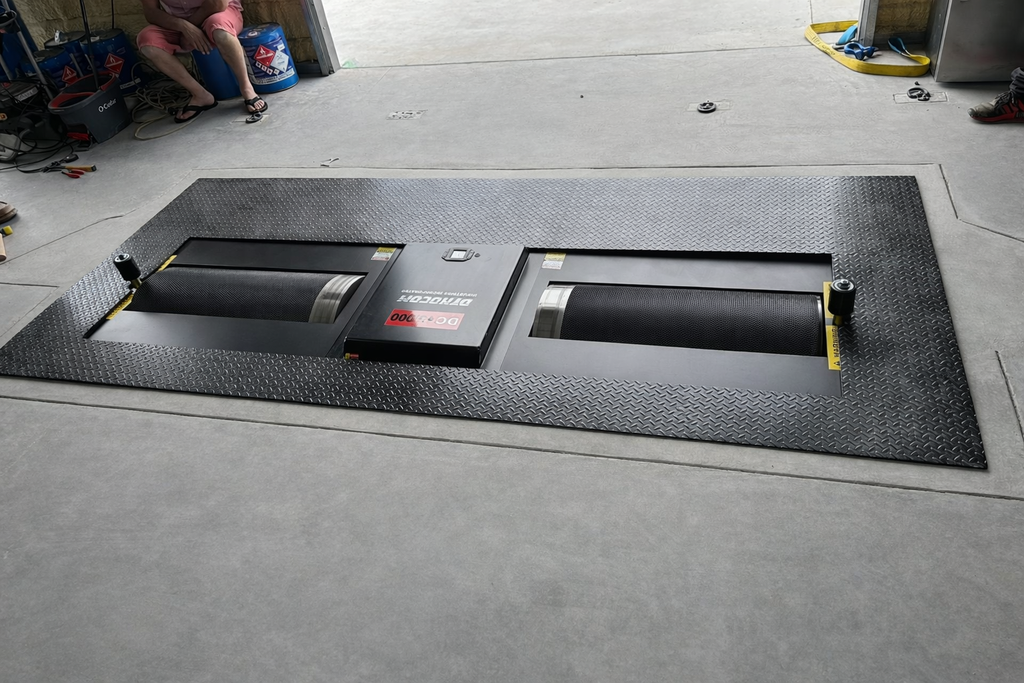

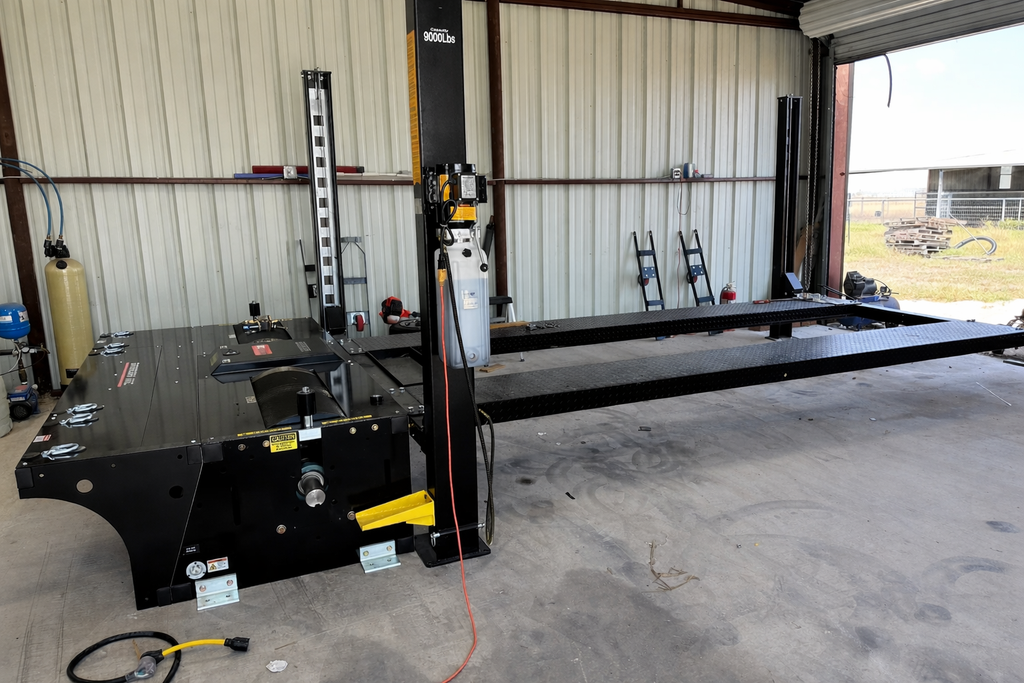

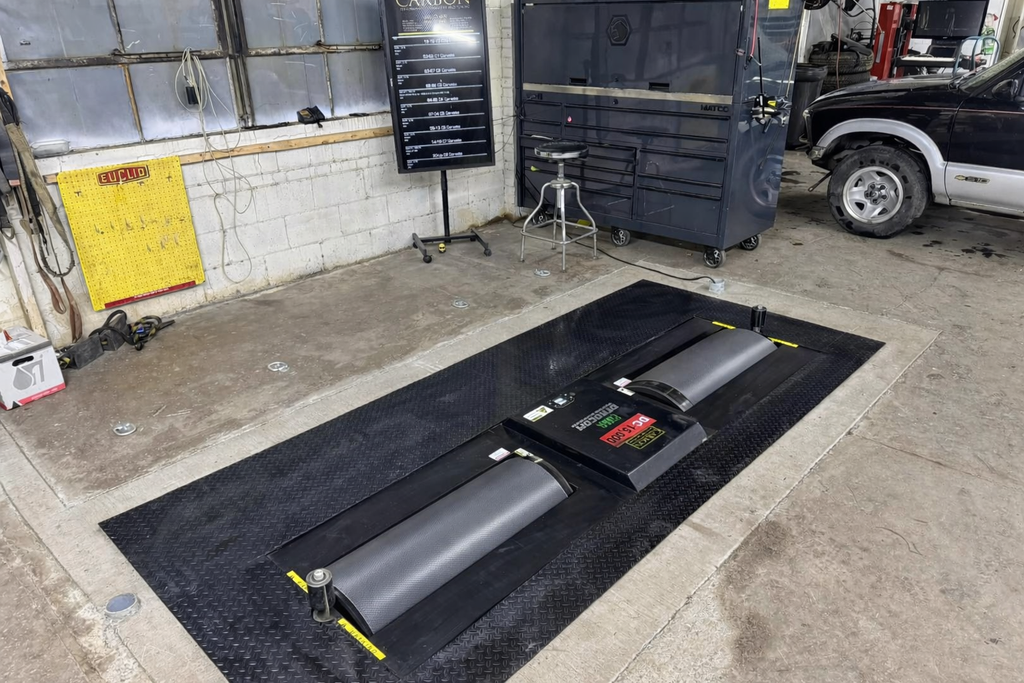

- Available in surface-mount and pit-mount configurations
