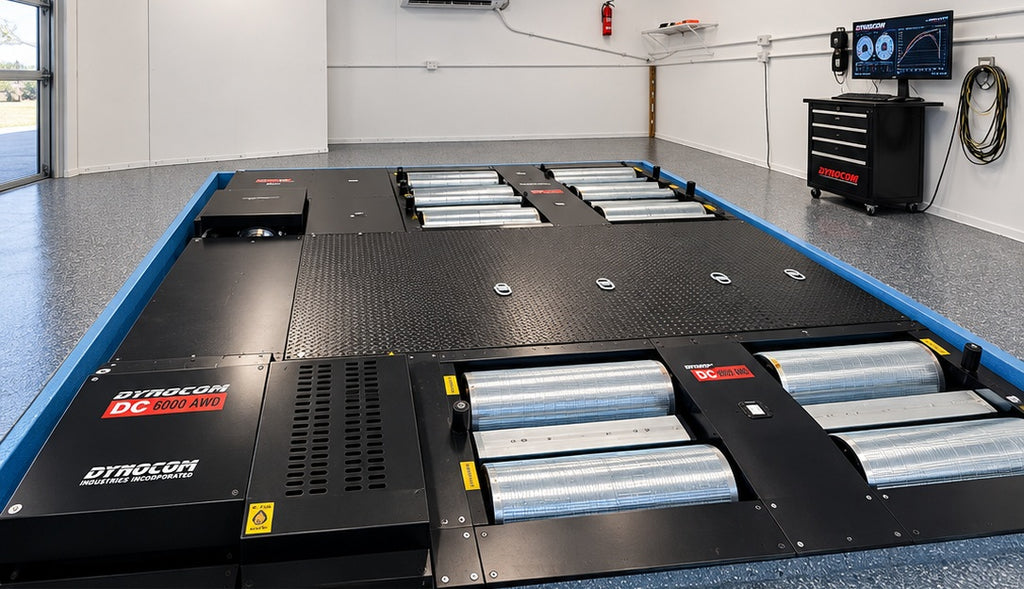

AWD 6000 GDFX

The World's Most Sophisticated 10.75" AWD Chassis Dynamometer System

The Dynocom AWD-6000-GDFX Series is purpose-built for shops that demand the highest level of AWD testing capability.

Performance Ratings

• Max horsepower: 2,300+ HP AWD / 1,500+ HP 2WD
• Max speed: 190 MPH
• Max axle weight: 8,000 lbs

Testing Capabilities

• Acceleration, step, sweep, and steady-state tests (eddy brake equipped)
• Real-time torque/horsepower output at steady and changing speeds
• Instantly evaluate fuel and timing map changes
• Diagnose engine and drivetrain problems
• Troubleshoot drivability issues
• Run ¼ mile drag strip or circle track lap simulations with custom reaction times

Specifications

• Max axle weight: 8,000 lbs
• Max horsepower: 2,300+ HP AWD / 1,500+ HP 2WD
• Max speed: 190 MPH
• Vehicle track range: 36" (min inside) – 86" (max)
• Wheelbase: 75.5"–148.5"
• Max steady state torque: 1,985 ft lbs per retarder
• Bearings per axle: 4
• Electrical requirements: 220/240 VAC @ 30 AMPs
• Air requirements: 120 PSI (for air brakes & pneumatic coupler)
