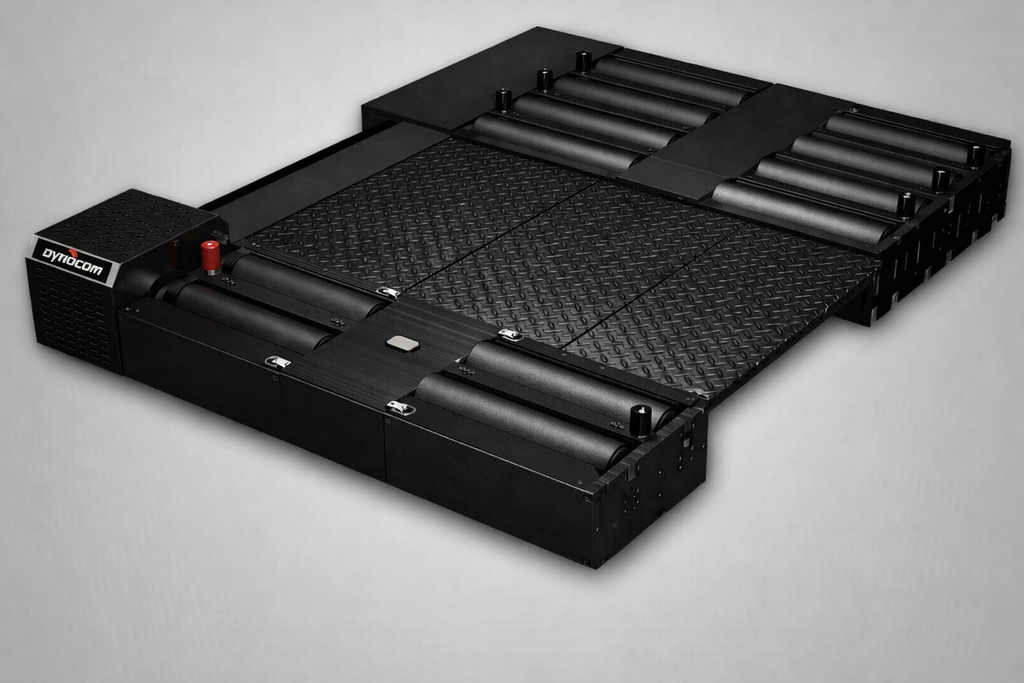

AWD 5000 GDFX

The World's Most Affordable Mechanically Linked AWD Chassis Dynamometer

The Dynocom AWD-5000GDFX is a revolution in AWD dynamometer technology

GDX Gearbox Advantage

Instead of traditional belt linkage, the AWD-5000GDFX uses Dynocom's exclusive custom-engineered GDX gearboxes — purpose-built for chassis and hub dynamometers and optimized for high torque, high speed, and simple installation.

• Reduced backlash vs belts
• Very low noise
• Less maintenance
• Simple installation
• Higher static and dynamic torque ratings
• Higher speed than belts
• Direct positive linkage / instantaneous response

AWD & 2WD Compatibility

The heavy-duty GDX gearboxes ensure front and rear rollers always spin at precisely the same road speed — eliminating traction control activation and ensuring torque management systems operate as if the vehicle is driving normally. The AWD-5000GDFX can also be operated in AWD Mode while testing 2WD vehicles, spinning the non-driven axle at the same speed as the driven axle to eliminate speed differentials.

Testing Capabilities

• Acceleration, step, sweep, and steady-state tests (with eddy brake)
• Real-time torque/horsepower output at steady and changing speeds
• Diagnose engine and drivetrain problems
• Troubleshoot drivability issues
• Run ¼ mile drag strip or circle track lap simulations with custom reaction times
• Instantly evaluate fuel and timing map changes

Specifications

• Max axle weight: 6,500 lbs
• Max horsepower: 2,250+ HP
• Max speed: 175+ MPH (AWD linked: 155 MPH)
• Vehicle track range: 16" (min inside) – 86" (max)
• Wheelbase length: 96"–134"
• Max steady state torque: 2,200 ft lbs per retarder
• Max dynamic torque: 10,000 ft lbs per axle
• Electrical requirements: 220/240 VAC @ 25 AMPs
• Air requirements: 90 PSI @ 4.5 CFM (for air bag lift kit)

Everything Included

• Chassis dynamometer with eddy brake
• Dynocom exclusive AWD GDX gearboxes
• 11-gauge steel shrouds for linkage system
• Pneumatic engage/disengage coupler system (2WD/AWD)
• 3× steel decking/mounts
• 6× safety stabilizer rollers
• 2× Dynocom Racing shirts
• Dynocom shop banner
• One-year warranty on all mechanicals (replacement parts)
• 2WD linkage on primary dyno
• Air bag lift on primary dyno
• Lifetime free software updates
